Sanitary Valve

Sanitary Valve

Sanitary Ball Valve and Butterfly Valve

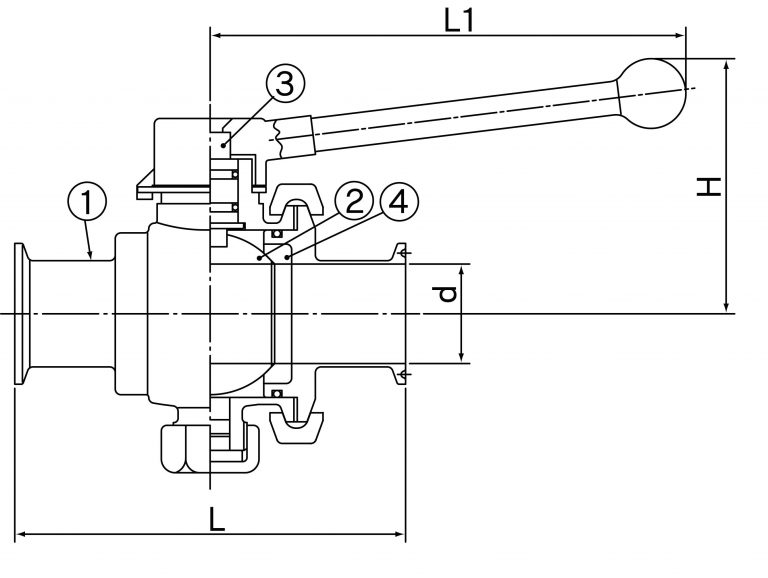

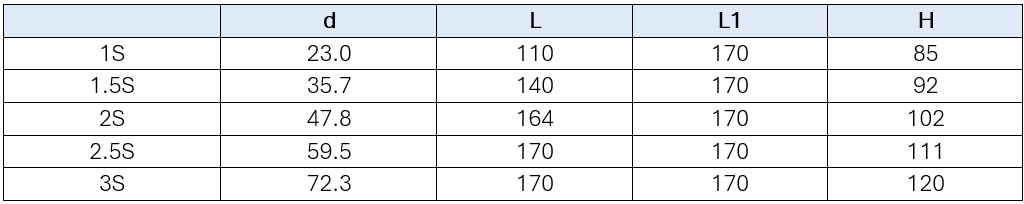

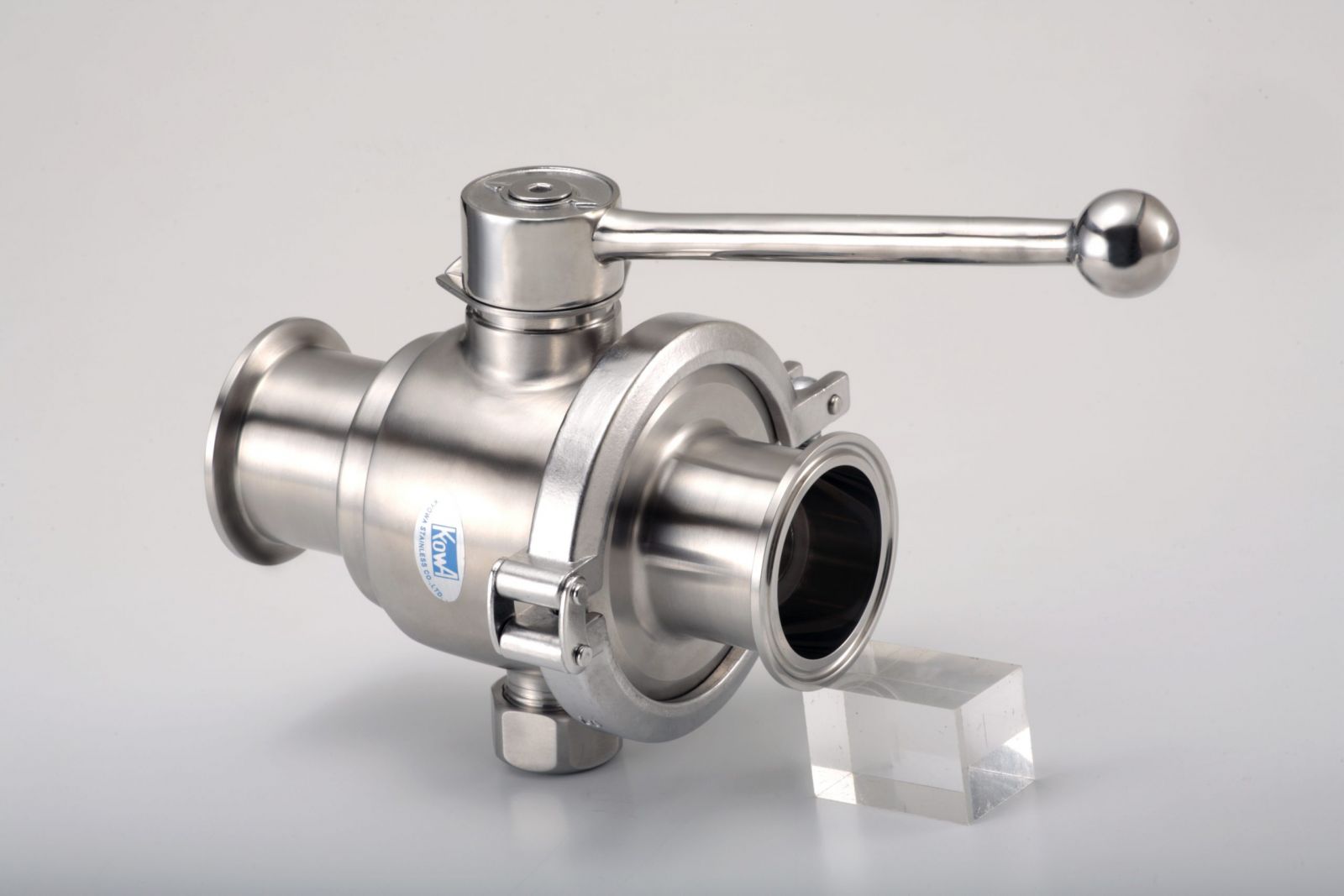

Manual 2-way ball valve




Normal Specification



Nominal Size: 1S - 3S
1.) Body
2.) Ball
3.) Valve Stem
4.) Gasket/Seat

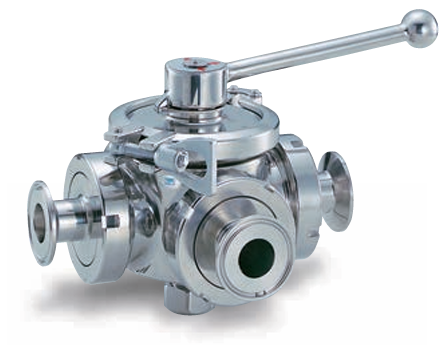

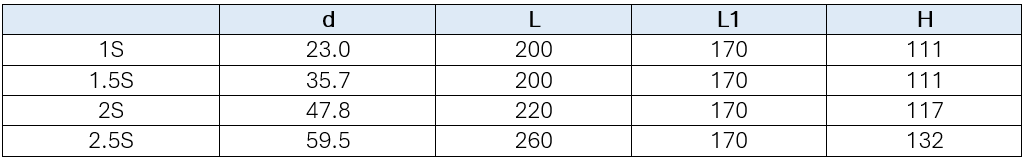

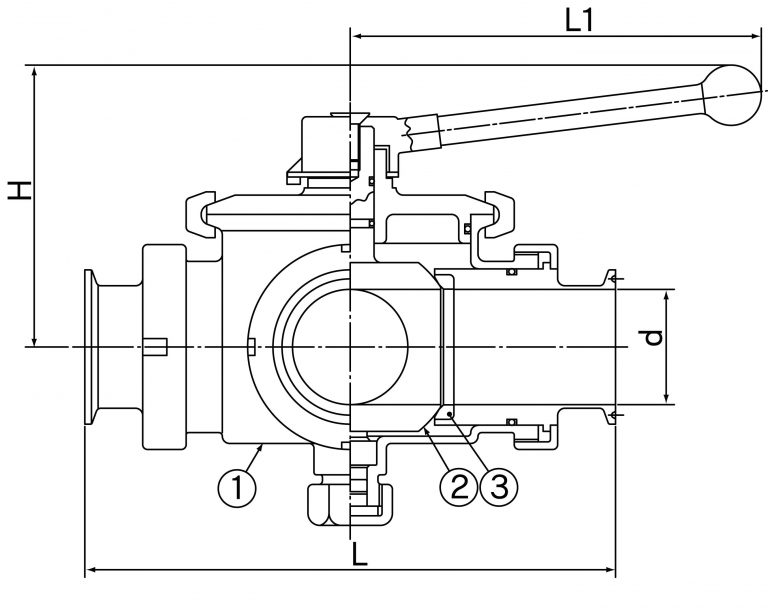

Manual 3-way ball valve




Normal Specification


Nominal Size: 1S - 2.5S
1.) Body
2.) Ball
3.) Gasket/Seat

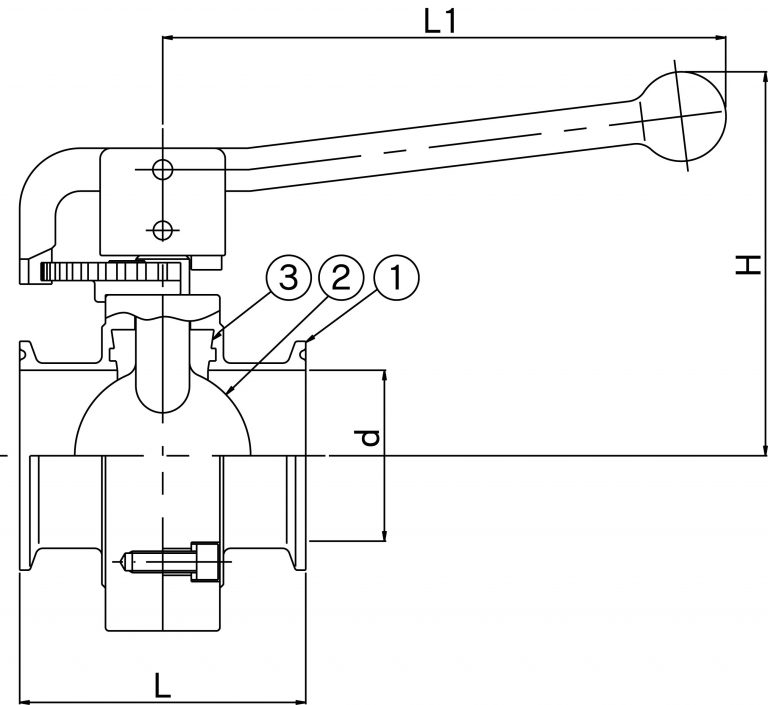

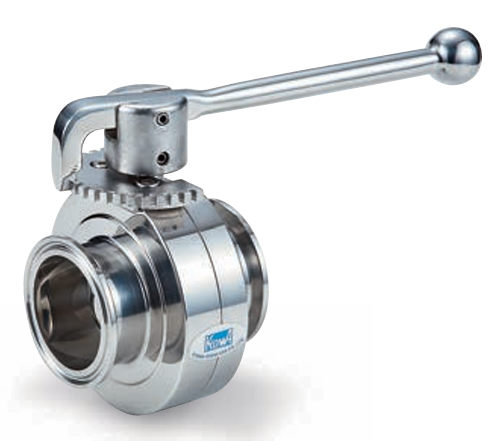

Manual Butterfly Valve

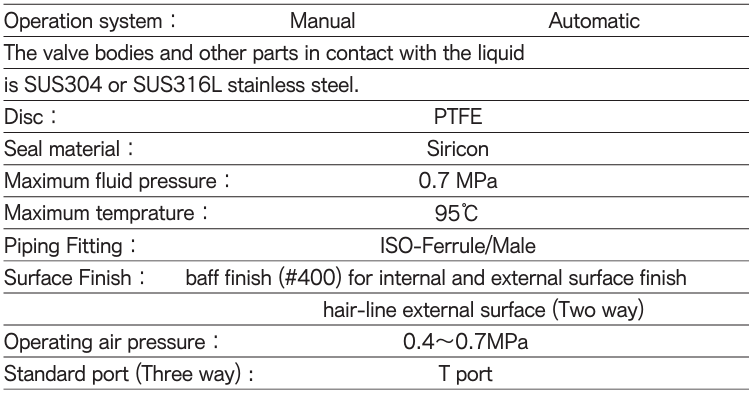

Normal Specification




1.) Body
2.) Valve Body Disc
3.) Seat Ring

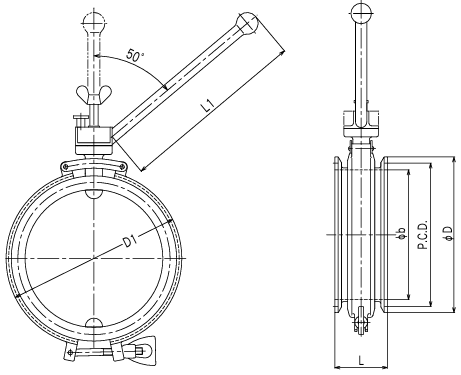

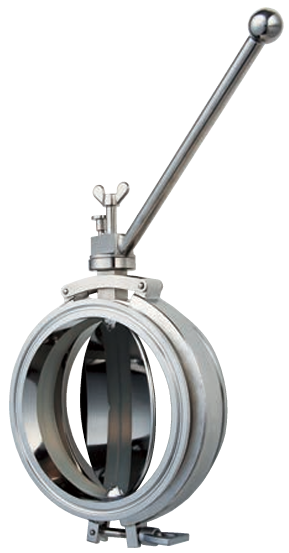

Butterfly Valves(For Powder Service)

- The valve’s light weight simplifies piping work.
- Simple structure and no need for tools allows valve assembly and disassembly to be completed in a short time.

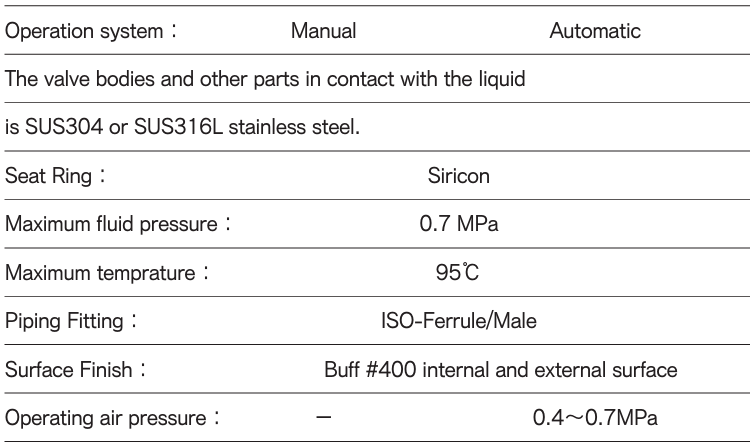

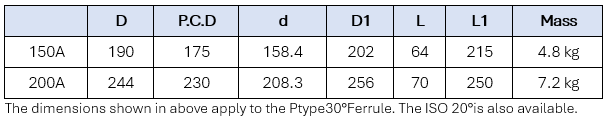

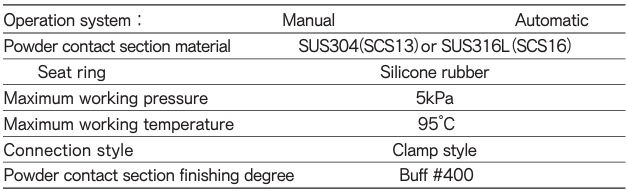

Normal Specification

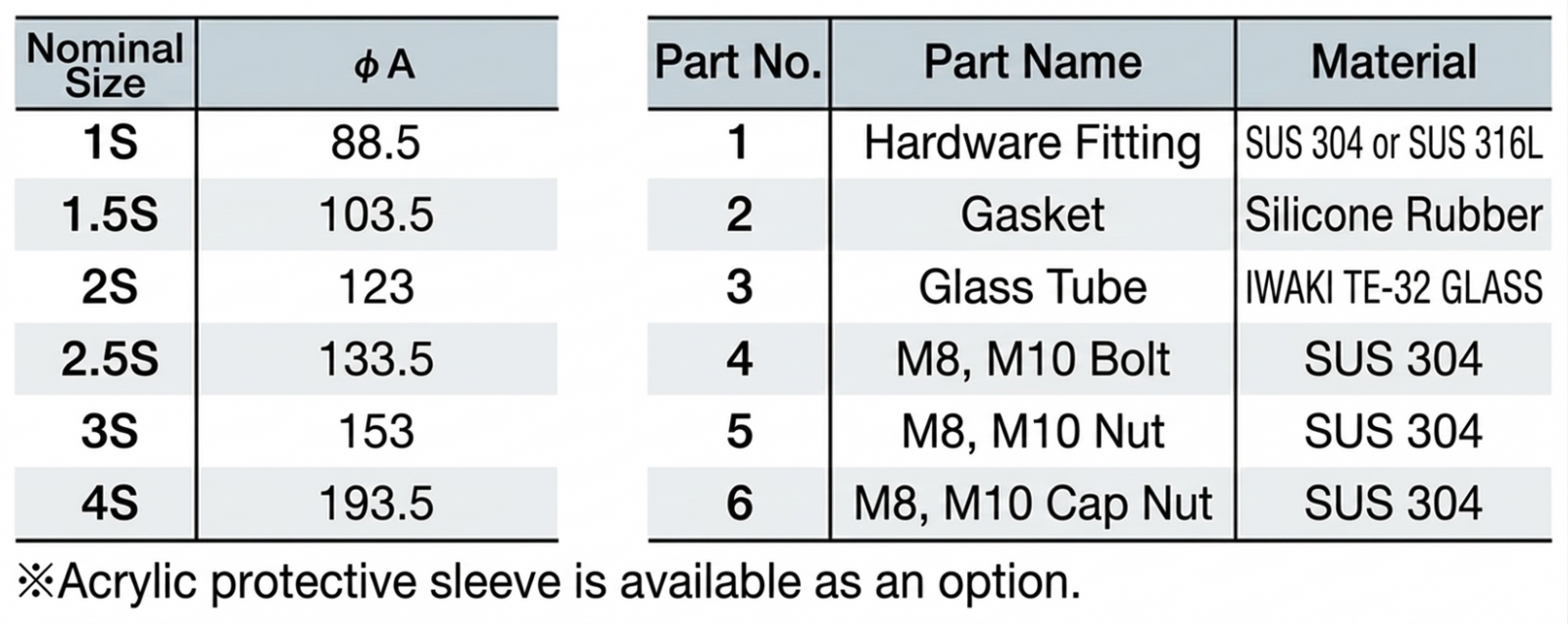

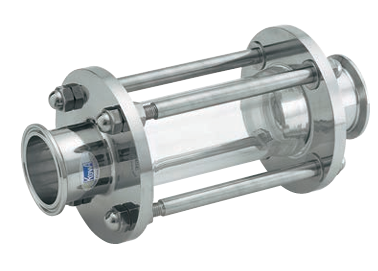

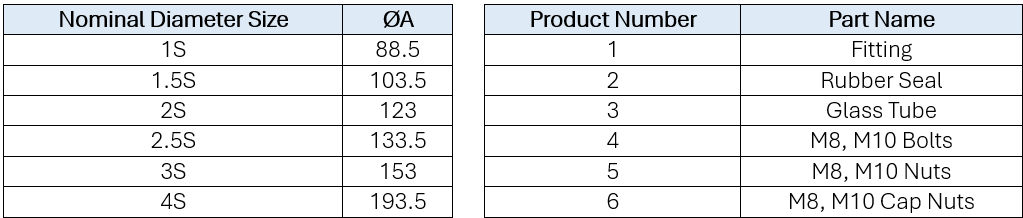

Sight Glass
