Kowa KG series
The KG Series vibratory separator features integrated vertical vibration technology, which enhances particle motion to accelerate the separation rate, resulting in an immediate 2- to 4-fold increase in production capacity without compromising strict quality control standards. As a vital component of inline quality control, the system classifies powder and granular substances based on predetermined particle sizes through vibration to guarantee commercial-grade product consistency. The unit is engineered for precise, continuous operation, supporting material grading, scalping of contaminants, and dedusting of fine particles from the main product flow.
Feature of KG series:
- Capacity is 2–4 times greater: By doubling of amplitude (increasing the intensity of vibration), the processing capacity is increased by 2 to 4 times compared to KOWA's conventional sieve machines.
- Fast and Accurate Sieving: It is designed to meet market demand for faster, more reliable, and more precise screening.
- Reduced Noise Level: The noise level is reduced by 10% compared to conventional models, making it more eco-friendly.
- Stronger Structure: The structure is stronger compared to conventional models.
- Improved Clogging Prevention: The faster vibration helps Tapping Balls bounce effectively, providing better performance in preventing screen clogging.
- Adjustable Vibration Pattern: The vibration pattern can be altered (adjusted) to suit the properties of the material being screened.
Attachable Functions:
- Inner Ring
- Outer Ring
- Cassette
- Reverse (R)
- Wave (W)
- Ultrasonic (J)
Processing power comparison

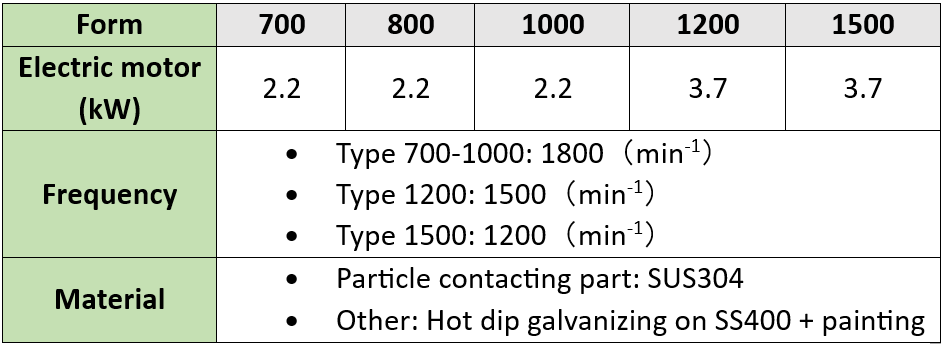

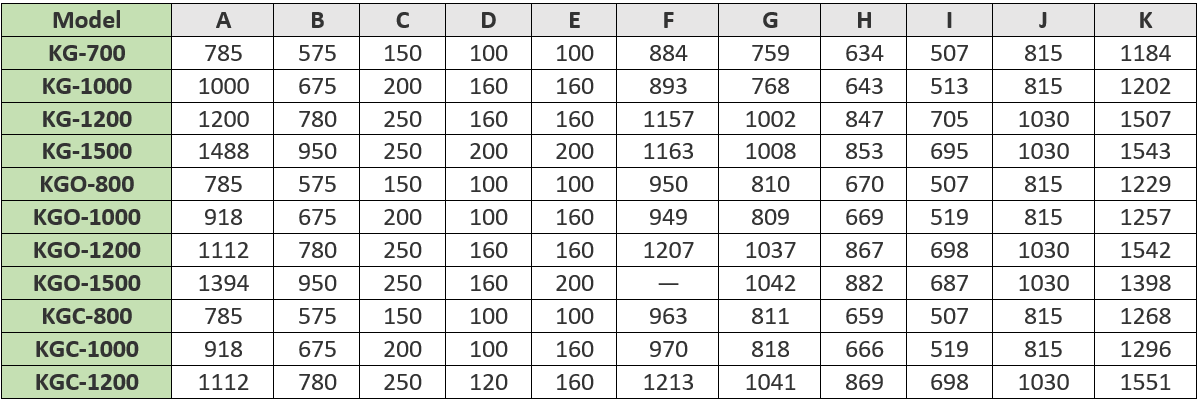

Specification:
Application Example:
- Ceramics Related: Silica, Lime, Glass, Casting Sand, Ceramics, Tile Raw Materials
- Chemicals: Toner, Carbon, Powder Coating, Cellulose, Pigment
- Food: Flour, Tea, Sugar, Starch, Coffee Bean, Curry Powder
- Metal Connections: Iron Powder, Silver Powder, Copper Powder, Shot Balls, Abrasives
- Medical: Medical Powder, Herbal Medicine, Amino Acid, Citric Acid, Corn Starch
- Pollution: Asbestos Recovery
