The Impact Universal Pulverizer (Pin mill)
The Impact Universal Pulverizer (Pin mill) is a high-efficiency grinder engineered for particle size reduction of a wide range of raw materials, based on the pin mill impact principle.







Features of Pin Mill:

  • High Efficiency & Compact: High throughput and a smaller footprint compared to standard Pin Mills.
  • Direct Drive: Motor directly connects to the rotor, maximizing efficiency by eliminating transmission loss.
  • Reduced Pollution: Low noise and minimal exhaust/emissions.
  • Durability: Built with cast steel for extended machine lifespan.
  • Variable Speed: Compatible with an inverter for precise rotor speed and direction control.
  • Safety: Equipped with an inlet magnet to remove ferrous foreign matter.

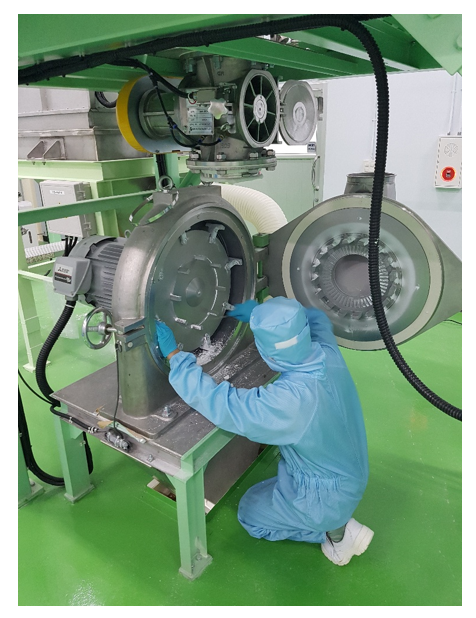

Internal Structure and Principle:
  • Operator puts raw material into hopper at the upper part of the main body.
  • Feeder constantly supplies raw material to the pulverizer body.
  • Raw material in the body is distributed by the flow and the centrifugal force of the wind.
  • Raw material is milled by pin of rotating plate and pin of fixed plate at door side.
  • Output particle size is regulated by the punching plate’s opening size.
*Milling grain size can be varied by the rotation speed and the punching screen’s opening.
*Standard machine equips a magnet at pulverizer’s inlet to remove foreign metal material.






Specification:













Application Examples:


Milling Reference:
*For reference only, milling results depend on material condition.
